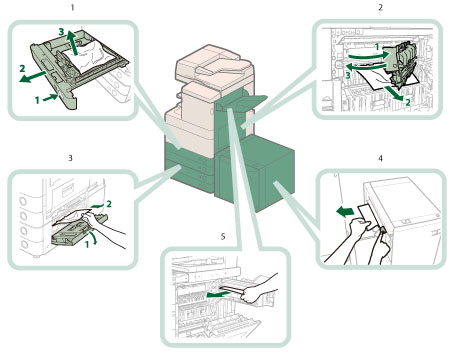

Locations of Paper Jams
Paper jams may occur in the following parts of the machine. See the applicable section to clear the paper jam.
1.
Paper Drawer
2.
Main Unit
3.
Cassette Feeding Unit-AD2 (Optional)
4.
Paper Deck Unit-B2 (Optional)
5.
Copy Tray-J1 (Optional)

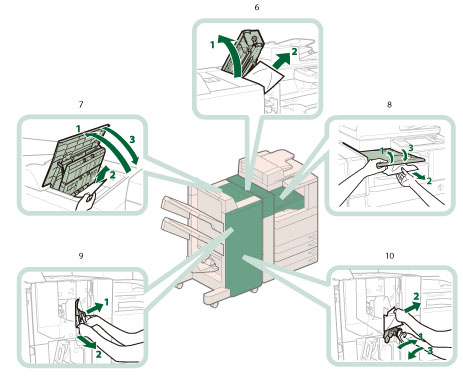

6.
External 2 Hole Puncher-B2/External 2/4 Hole Puncher-B2/External 4 Hole Puncher-B2
7.
Inside the Top Cover of the Finisher
8.
Buffer Pass Unit-G1
9.
Inside the Front Cover
10.
Saddle Stitcher Unit

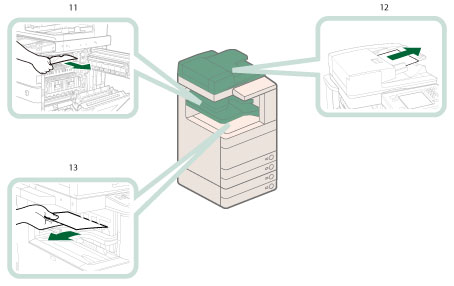

11.
Inner 2 Way Tray-F1 (Optional)
12.
Feeder (Optional)
13.
Inner Finisher-E1 (Optional)
»
