Inner 2 Way Tray-F1 (Optional)
06C2-0JY
Check the location of the paper jam, and follow the procedure described below, while referring to the directions that appear on the touch panel display, to remove the jammed paper.
NOTE
The Inner 2 Way Tray-F1 is an optional product.
If the Paper Deck Unit-B2 is attached, move the paper deck unit away from the main unit before proceeding with this procedure.
If the Copy Tray-J1 is attached to the main unit, remove all output paper from the tray.
1.
Open the lower right and upper right covers of the machine.

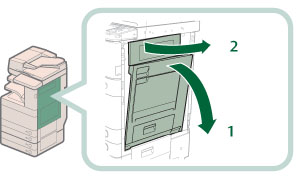

1.Grip the handle, and open the lower right cover of the machine.
2.Open the upper right cover of the machine.
2.

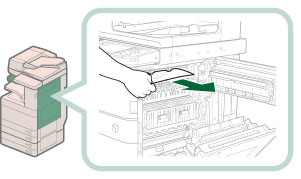

Remove any jammed paper.
3.
Close the upper right cover and then close the lower right cover.
CAUTION
When closing the upper and lower right covers of the main unit, be careful not to get your fingers caught, as this may result in personal injury.
NOTE
Gently close the covers until they click into place in the closed position.
If the Paper Deck Unit-B2 was moved away from the main unit, reconnect it to the main unit.
4.
Follow the instructions on the screen.
NOTE
The screen indicating the directions on how to clear the paper jam is displayed repeatedly until the paper jam is cleared.
